Teardrop "U" Channels Extruded

Choose a style to view its sizes and drawing.

U-channel size guide

Available Variations

Straight Sides, All Corners Square, Square Slot
13 sizesSlot width (A): 1/32 to 1-1/2 in

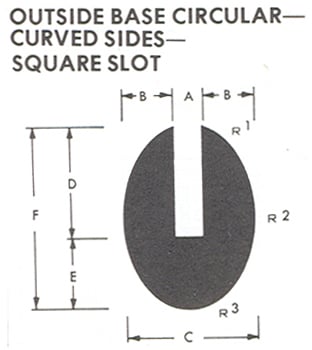

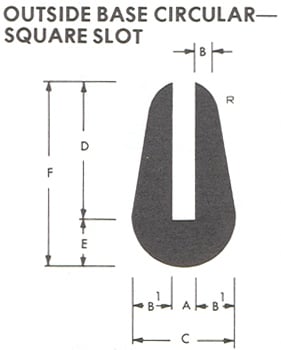

Outside Base Circular, Square Slot
14 sizesSlot width (A): 1/32 to 7/32 in
Outside Base Circular, Curved Sides Square Slot
8 sizesSlot width (A): 0.022 to 5/8 in
Teardrop "U" Channel, Style A
10 sizesSlot width (A): 3/32 to 1-3/16 in
Teardrop "U" Channel, Style B
8 sizesSlot width (A): 1/16 to 1-5/16 in
Teardrop "U" Channel, Style C
17 sizesSlot width (A): 3/64 to 5/16 in
Teardrop "U" Channel, Style D
6 sizesSlot width at base (A): 3/64 to 7/32 in
