Engineered Sealing Solutions

Spiral Wound Gaskets

High-performance spiral wound gaskets for demanding industrial applications requiring superior sealing and temperature resistance. Our spiral wound gaskets are manufactured to the highest standards for critical sealing applications.

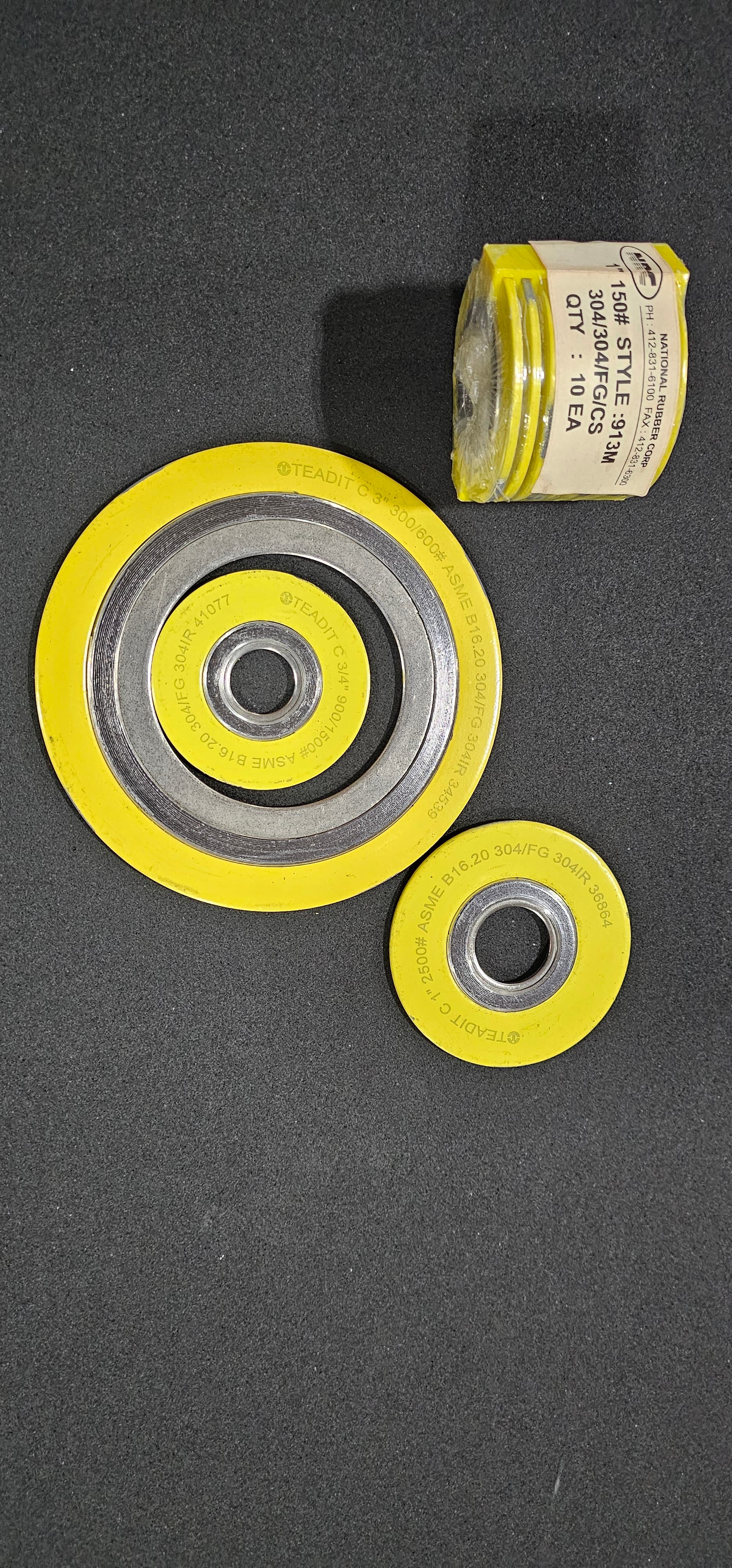

Spiral wound gaskets

Key Performance Features

Advanced Materials

Metal winding strip with soft filler material for superior sealing performance.

  • Available in Stainless Steel, Carbon Steel, Monel, Inconel
  • Filler materials: Graphite, PTFE, Ceramic, Non-Asbestos
  • Temperature range: -450°F to 2000°F depending on material
  • Available with inner and outer rings
High Pressure Capability

Designed for demanding industrial applications with superior pressure ratings.

  • Pressure ratings up to 2500 PSI
  • Handles pressure fluctuations
  • Suitable for critical sealing applications
  • Maintains integrity under varying loads
Industry Standards

Manufactured to the highest industry standards and specifications.

  • ASME B16.20 compliance
  • API 601 certified
  • DIN standards compliance
  • Custom specifications available

Technical Specifications

Temperature Range

-450°F to 2000°F

Extreme temperature capability depending on material

Pressure Rating

Up to 2500 PSI

High pressure capability for demanding applications

Standards

ASME B16.20

API 601, DIN standards compliance

Metal Materials

Multiple Options

Stainless Steel, Carbon Steel, Monel, Inconel

Filler Materials

Various Options

Graphite, PTFE, Ceramic, Non-Asbestos

Configuration

Customizable

Available with inner and outer rings

Precision Manufacturing Process

Manufactured of alternate piles of pre-formed metal and a soft, non-metallic filler, spiral wound gaskets offer a precision-engineered, yet low cost solution that combines fire resistance and the ability to handle temperature and pressure fluctuations.

  • 1

    V-Shaped Metal Strip Formation

    Pre-formed metal strips are precisely shaped to provide spring-like properties under load.

  • 2

    Spiral Winding Process

    Metal strip and non-metallic filler are spirally wound together with precise density control.

  • 3

    Density Optimization

    The density of the spiral gasket is varied to meet virtually any sealing requirement.

  • 4

    Material Selection

    Filler and winding materials are selected based on chemical compatibility requirements.

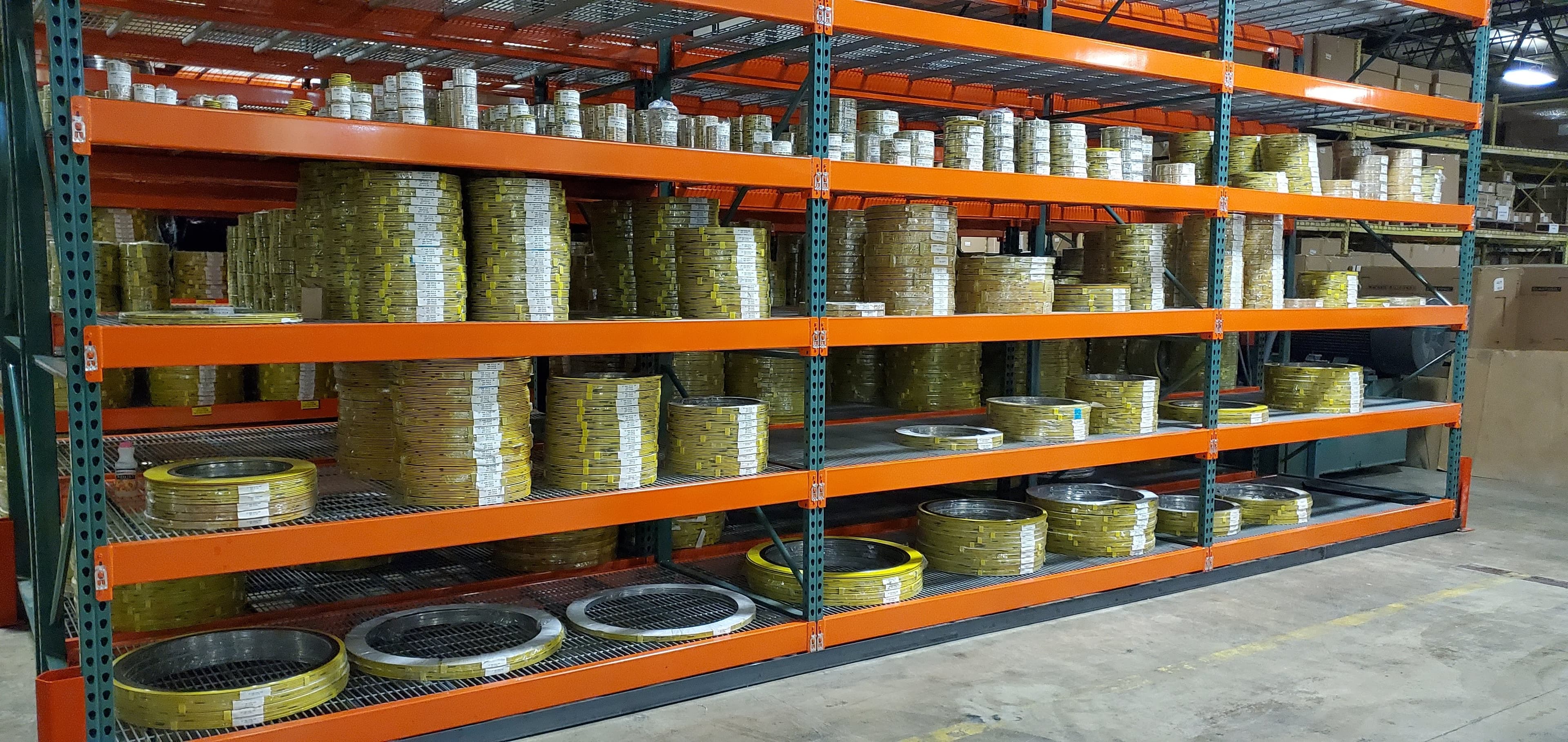

Spiral wound gasket construction

Industry Applications

Oil & Gas Refineries

Critical sealing solutions for high-pressure, high-temperature refinery operations.

  • Flange joints
  • Heat exchangers
  • Pressure vessels
  • Process equipment

Chemical Processing Plants

Chemical-resistant sealing for demanding chemical processing applications.

  • Process vessels
  • Chemical reactors
  • Corrosive environments
  • Pipeline connections

Power Generation Facilities

Reliable sealing for power plants and energy generation systems.

  • Steam systems
  • Boilers
  • Turbine equipment
  • High-temperature flanges

High-Temperature Flanges

Specialized sealing for extreme temperature flange applications.

  • Furnace connections
  • High-temp piping
  • Thermal cycling applications
  • Extreme environments

Steam Systems

Proven performance in steam and high-temperature fluid applications.

  • Steam piping
  • Boiler connections
  • Steam turbines
  • Heat recovery systems

Heat Exchangers

Critical sealing for heat transfer equipment and thermal systems.

  • Shell and tube exchangers
  • Plate exchangers
  • Thermal systems
  • Process cooling

Materials & Configurations

Metal Winding Materials
  • 316L Stainless Steel- General purpose, corrosion resistant
  • 321 Stainless Steel- High temperature applications
  • Inconel 600- Extreme temperature and corrosion
  • Monel 400- Marine and chemical environments
  • Hastelloy C-276- Severe chemical service
Filler Materials
  • PTFE- Chemical resistance, low friction
  • Graphite- High temperature, self-lubricating
  • Ceramic Fiber- Extreme temperature applications
  • Non-Asbestos- General purpose, safe alternative

Spiral Wound Gasket Advantages

High Reliability

Proven performance in demanding applications with consistent sealing

Wide Stress Range

Can be used across a broad range of stress conditions and applications

Flange Protection

Will not damage flange surfaces during installation or removal

Easy Installation

Simple installation process reduces downtime and labor costs

Non-Adhesive

Can be easily removed without damaging equipment surfaces

Custom Engineering

Engineered to meet your specific application requirements

Ready for Your Custom Spiral Wound Gasket Project?

Our experienced team will assess your concepts and make design and material recommendations to improve product manufacture and reduce your cost. ISO 9001:2008 certified quality.
