U-Channels Extruded - Trapezoid Slot
"U" Channels Extruded [ Trapezoid Slot ]
* Long Leg 1/8' '
Product Code: UChannel108a

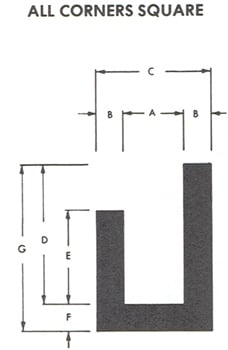

ID | A | B | C | D | E | F | Part No | Add to Quote |
|---|---|---|---|---|---|---|---|---|
| 1 | 3/64 | 1/32 | 7/64 | 1/8 | 1/32 | 5/32 | NRC-U-6771 | |
| 2 | 5/64 | 1/8 | 5/16 | 5/32 | 5/32 | 5/16 | NRC-U-6772 | |
| 3 | 5/64 | 1/8 | 21/64 | 1/2 | 3/64 | 5/8 | NRC-U-6773 | |
| 4 | 3/32 | 3/64 | 3/16 | 25/64 | 1/16 | 7/16 | NRC-U-6774 | |
| 5 | 3/32 | 1/16 | 7/32 | 3/16 | 3/64 | 1/4 | NRC-U-6775 | |
| 6 | 1/8 | 3/64 | 7/32 | 11/64 | 1/32 | 7/32 | NRC-U-6776 | |
| 7 | 1/8 | 3/64 | 7/32 | 3/16 | 1/32 | 7/32 | NRC-U-6777 | |
| 8 | 1/8 | 1/16 | 1/4 | 1/8 | 1/16 | 5/32 | NRC-U-6778 | |
| 9 | 1/8 | 1/16 | 1/4 | 1/8 | 1/32 | 3/16 | NRC-U-6779 | |
| 10 | 1/8 | 1/16 | 1/4 | 3/16 | 1/16 | 7/32 | NRC-U-6780 | |
| 11 | 1/8 | 1/16 | 1/4 | 1/4 | 3/32 | 5/16 | NRC-U-6781 | |
| 12 | 1/8 | 3/32 | 5/16 | 3/16 | 1/8 | 9/32 | NRC-U-6782 | |
| 13 | 1/8 | 1/8 | 3/8 | 3/8 | 1/16 | 7/16 | NRC-U-6783 | |
| 14 | 11/64 | 1/16 | 13/64 | 7/64 | 1/16 | 11/64 | NRC-U-6784 | |
| 15 | 3/16 | 1/32 | 1/4 | 1/4 | 1/16 | 5/16 | NRC-U-6785 | |
| 16 | 15/64 | 1/16 | 3/8 | 1/4 | 1/16 | 5/16 | NRC-U-6786 | |
| 17 | 1/4 | 1/32 | 5/16 | 5/16 | 1/8 | 3/8 | NRC-U-6787 | |
| 18 | 1/4 | 1/16 | 3/8 | 3/8 | 1/16 | 1/2 | NRC-U-6788 | |
| 19 | 1/4 | 1/16 | 3/8 | 7/16 | 3/32 | 1/2 | NRC-U-6789 | |
| 20 | 1/4 | 3/32 | 7/16 | 5/32 | 1/8 | 1/4 | NRC-U-6790 | |
| 21 | 1/4 | 1/8 | 1/2 | 1-5/8 | 1/8 | 1-3/4 | NRC-U-6791 | |
| 22 | 1/4 | 1/8 | 1/2 | 2-1/8 | 1/8 | 2-1/4 | NRC-U-6792 | |
| 23 | 3/8 | 1/8 | 5/8 | 7/8 | 1/8 | 1 | NRC-U-6793 | |
| 24 | 3/4 | 1/8 | 1-3/8 | 1/8 | 1-1/2 | NRC-U-6794 | ||
| 25 | 3/4 | 1/8 | 2-1/8 | 1/8 | 2-1/2 | NRC-U-6795 | ||
| 26 | 7/8 | 1/16 | 1 | 3/8 | 1/16 | 7/16 | NRC-U-6796 | |
| 27 | 7/8 | 1/16 | 1 | 3/8 | 1/16 | 7/16 | NRC-U-6797 | |
| 28 | 7/8 | 1/16 | 1 | 1/2 | 1/16 | 9/16 | NRC-U-6798 | |
| 29 | 15/16 | 1/16 | 1-1/16 | 3/8 | 1/16 | 7/16 | NRC-U-6799 |
