"U" Channels Extruded, Unequal Leg

Choose a style to view its sizes and drawing.

U-channel size guide

Available Variations

All Corners Square
28 sizesSlot width (A): 1/32 to 1-1/2 in
Base Square Inside Circular Outside
5 sizesSlot width (A): 1/32 to 3/32 in

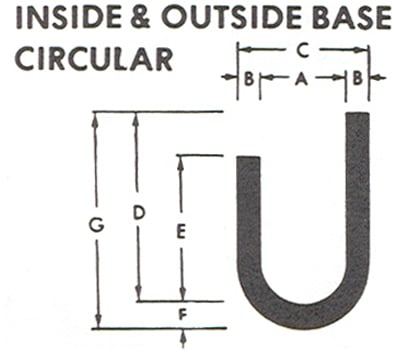

Inside & Outside Base Circular
5 sizesSlot width (A): 3/64 to 1/16 in
Unequal Leg Width All Corners Square
16 sizesSlot width (A): 1/32 to 9/32 in
Unequal Leg Length & Width, Outside Base Corners Radial
6 sizesSlot width (A): 3/64 to 1/4 in
