"U" Channels Extruded

Choose a style to view its sizes and drawing.

U-channel size guide

Available Variations

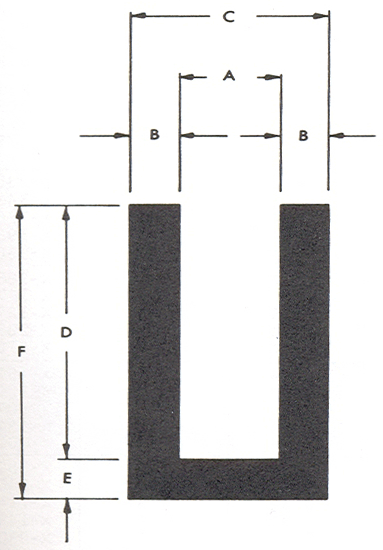

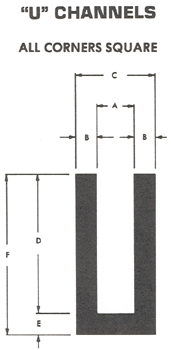

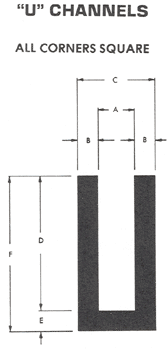

All Corners Square, Slot Width 1/64 to 1/16 in
40 sizes
All Corners Square, Slot Width 1/16 to 1/8 in
64 sizes
All Corners Square, Slot Width 1/8 to 1/4 in
65 sizes
All Corners Square, Slot Width 1/4 to 33/64 in
65 sizes
All Corners Square, Slot Width 1/2 to 2-1/2 in
64 sizes

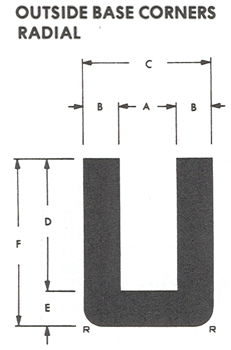

Outside Base Corners Radial
39 sizesSlot width (A): 1/32 to 2-1/2 in

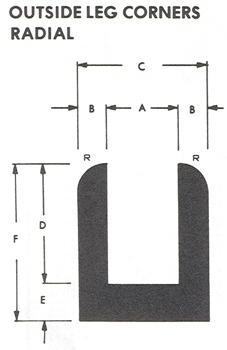

Outside Leg Corners Radial
28 sizesSlot width (A): 1/32 to 1-5/8 in

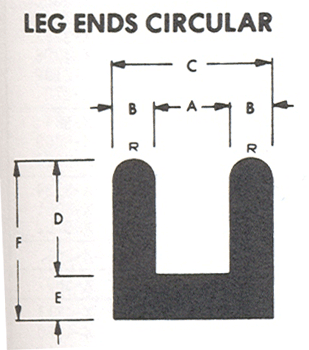

Leg Ends Circular
10 sizesSlot width (A): 3/64 to 2 in

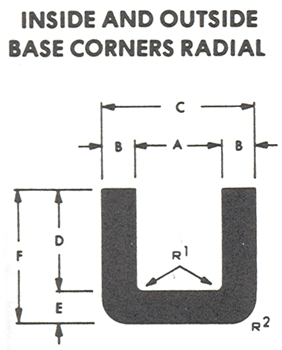

Inside & Outside Base Corners Radial
17 sizesSlot width (A): 1/16 to 3 in

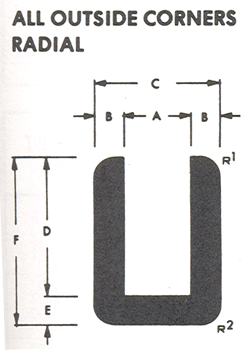

All Outside Corners Radial
24 sizesSlot width (A): 3/64 to 2 in

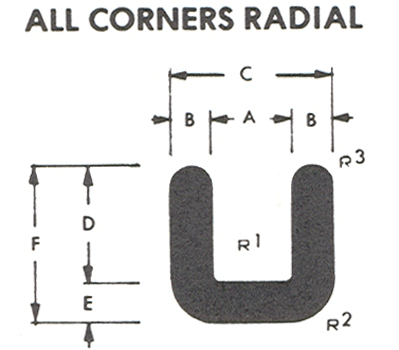

All Corners Radial
10 sizesSlot width (A): 1/8 to 3-9/16 in

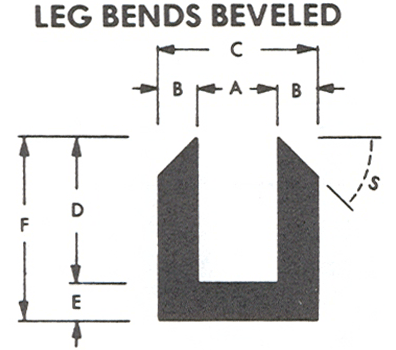

Leg Bends Beveled
7 sizesSlot width (A): 1/32 to 1-1/4 in

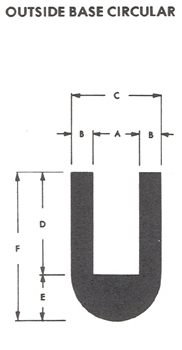

Outside Base Circular
29 sizesSlot width (A): 1/32 to 5/8 in

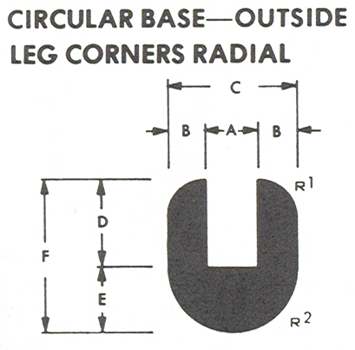

Circular Base, Outside Leg Corners Radial
11 sizesSlot width (A): 3/64 to 3/16 in

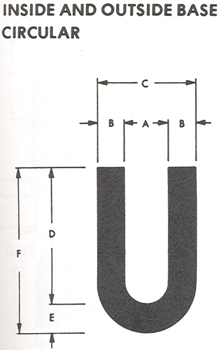

Inside & Outside Base Circular
23 sizesSlot width (A): 1/32 to 1/2 in
Inside & Outside Base Circular, Outside Leg Circular
14 sizesSlot width (A): 3/64 to 1/8 in
