Bumpers & Tubing Extruded

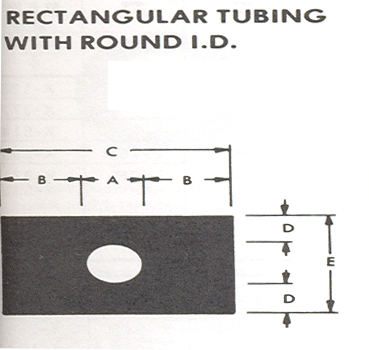

Rectangular Tubing with Round I.D.
5 columns
| Part No | A | B | C | D | E | Add to Quote |
|---|---|---|---|---|---|---|
| NRC-B-8284 | 1/32 | 3/64 | 1/8 | 1/32 | 3/32 | |
| NRC-B-8285 | 1/16 | 3/32 | 1/4 | 3/32 | 1/4 | |
| NRC-B-8286 | 1/8 | 3/64 | 7/32 | 1/32 | 3/16 | |
| NRC-B-8287 | 1/8 | 1/16 | 1/4 | 1/16 | 1/4 | |
| NRC-B-8288 | 1/8 | 3/32 | 5/16 | 3/32 | 5/16 | |
| NRC-B-8289 | 1/8 | 5/32 | 7/16 | 3/32 | 5/16 | |
| NRC-B-8290 | 5/32 | 1/16 | 9/32 | 1/16 | 9/32 | |
| NRC-B-8291 | 5/32 | 7/64 | 3/8 | 7/64 | 3/8 | |
| NRC-B-8292 | 11/64 | 1/4 | 1/16 | 1/4 | 11/16 | |
| NRC-B-8293 | 3/16 | 3/32 | 3/8 | 3/32 | 3/8 | |
| NRC-B-8294 | 3/16 | 5/32 | 1/2 | 3/32 | 3/8 | |
| NRC-B-8295 | 3/16 | 9/32 | 3/4 | 9/32 | 3/4 | |
| NRC-B-8296 | 3/16 | 5/16 | 13/16 | 7/32 | 5/8 | |
| NRC-B-8297 | 7/32 | 17/64 | 3/4 | 13/64 | 5/8 | |
| NRC-B-8298 | 7/32 | 25/64 | 1 | 25/64 | 1 | |
| NRC-B-8299 | 1/4 | 1/4 | 3/4 | 3/32 | 7/16 | |
| NRC-B-8300 | 5/16 | 19/32 | 1-1/2 | 5/32 | 5/8 | |
| NRC-B-8301 | 3/8 | 1/4 | 7/8 | 1/4 | 7/8 | |
| NRC-B-8302 | 3/8 | 5/16 | 1 | 5/16 | 1 |
