Military Grommets

Our military-grade grommets are designed to meet strict specifications for defense and aerospace applications. These grommets provide superior protection, durability, and reliability in demanding environments.

Features & Specifications

Meets military specifications (MIL-SPEC)
Enhanced durability for harsh environments
Temperature resistance from -65°F to 275°F
Chemical and fluid resistance
UV and ozone resistance
Available in various sizes and configurations
Custom designs available to meet specific requirements

Manufacturing Process

Our military grommets are manufactured using precision processes to ensure they meet strict military specifications:

Custom Molding - For complex shapes and precise specifications
Die Cutting - For flat grommets and washers

Learn More About Our Manufacturing Processes

Common Applications

Aerospace

Aircraft wiring, bulkhead protection, avionics

Defense

Military vehicles, naval vessels, communication equipment

Available Products

Military Grommets

MS-35490 Military Standard Split General Purpose Grommets. Rubber synthetics, material specification MIL-R-003065 A (ORD) Grade SB-512-ABF2

Product Code: MilitaryGrommet

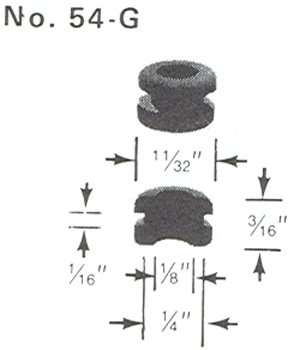

Inside Diameter	Groove Width	Groove Diameter	Outside Diameter	Overall Thickness	Part No
1/8	1/16	1/4	11/32	3/16	NRC-G-5001
1/8	1/16	9/16	3/4	3/16	NRC-G-5002
1/8	1/16	1	1-1/4	1/4	NRC-G-5003
3/16	1/16	5/16	7/16	3/16	NRC-G-5004
3/16	1/16	5/8	7/8	3/16	NRC-G-5005
1/4	1/16	7/16	5/8	3/16	NRC-G-5006
1/4	1/16	3/4	1	1/4	NRC-G-5007
1/4	1/16	1	1-1/4	1/4	NRC-G-5008
5/16	1/16	9/16	13/16	5/16	NRC-G-5009
5/16	1/16	3/4	1	5/16	NRC-G-5010
3/8	1/16	5/8	7/8	5/16	NRC-G-5011
3/8	1/16	1	1-1/4	1/4	NRC-G-5012
7/16	1/16	11/16	15/16	5/16	NRC-G-5013
1/2	1/16	13/16	1-1/16	5/16	NRC-G-5014
1/2	1/16	1-1/4	1-1/2	1/4	NRC-G-5015
9/16	1/16	13/16	1-1/16	5/16	NRC-G-5016
5/8	1/16	7/8	1-1/8	5/16	NRC-G-5017
5/8	1/16	1-1/4	1-1/2	1/4	NRC-G-5018
11/16	1/16	1	1-5/16	3/8	NRC-G-5019
3/4	1/16	1-1/16	1-3/8	3/8	NRC-G-5020
3/4	1/16	1-7/16	1-13/16	3/8	NRC-G-5021
7/8	1/16	1-1/4	1-5/8	7/16	NRC-G-5022
1	1/16	1-3/8	1-3/4	7/16	NRC-G-5023
1-1/2	1/16	1-3/4	2-1/8	7/16	NRC-G-5024
1/8	1/8	9/16	3/4	1/4	NRC-G-5025
1/8	1/8	1	1-1/4	5/16	NRC-G-5026
3/16	1/8	5/16	7/16	1/4	NRC-G-5027
3/16	1/8	5/8	7/8	1/4	NRC-G-5028
1/4	1/8	7/16	5/8	1/4	NRC-G-5029
1/4	1/8	3/4	1	5/16	NRC-G-5030
1/4	1/8	1	1-1/4	5/16	NRC-G-5031
5/16	1/8	9/16	13/16	3/8	NRC-G-5032
5/16	1/8	3/4	1	3/8	NRC-G-5033
3/8	1/8	5/8	7/8	3/8	NRC-G-5034
3/8	1/8	1	1-1/4	5/16	NRC-G-5035
7/16	1/8	11/16	15/16	3/8	NRC-G-5036
1/2	1/8	13/16	1-1/16	3/8	NRC-G-5037
1/2	1/8	1-1/4	1-1/2	5/16	NRC-G-5038
9/16	1/8	13/16	1-1/16	3/8	NRC-G-5039
5/8	1/8	7/8	1-1/8	3/8	NRC-G-5040
11/16	1/8	1	1-5/16	7/16	NRC-G-5041
3/4	1/8	1-1/16	1-3/8	7/16	NRC-G-5042
3/4	1/8	1-7/16	1-13/16	7/16	NRC-G-5043
7/8	1/8	1-1/4	1-5/8	1/2	NRC-G-5044
1	1/8	1-3/8	1-3/4	1/2	NRC-G-5045
1-1/2	1/8	1-3/4	2-1/8	1/2	NRC-G-5046
1/8	3/16	1	1-1/4	3/8	NRC-G-5047
3/16	3/16	5/16	7/16	5/16	NRC-G-5048
1/4	3/16	7/16	5/8	5/16	NRC-G-5049
1/4	3/16	1	1-1/4	3/8	NRC-G-5050
5/16	3/16	9/16	13/16	7/16	NRC-G-5051
5/16	3/16	3/4	1	7/16	NRC-G-5052
3/8	3/16	5/8	7/8	7/16	NRC-G-5053
7/16	3/16	11/16	15/16	7/16	NRC-G-5054
1/2	3/16	13/16	1-1/16	7/16	NRC-G-5055
1/2	3/16	1-1/4	1-1/2	3/8	NRC-G-5056
9/16	3/16	13/16	1-1/16	7/16	NRC-G-5057
5/8	3/16	7/8	1-1/8	7/16	NRC-G-5058
5/8	3/16	1-1/4	1-1/2	3/8	NRC-G-5059
11/16	3/16	1	1-5/16	1/2	NRC-G-5060
3/4	3/16	1-1/16	1-3/8	1/2	NRC-G-5061
7/8	3/16	1-1/4	1-5/8	9/16	NRC-G-5062
1	3/16	1-3/8	1-3/4	9/16	NRC-G-5063
1-1/2	3/16	1-3/4	2-1/8	9/16	NRC-G-5064
1/8	1/4	1	1-1/4	7/16	NRC-G-5065
3/16	1/4	5/16	7/16	3/8	NRC-G-5066
1/4	1/4	7/16	5/8	3/8	NRC-G-5067
1/4	1/4	1	1-1/4	7/16	NRC-G-5068
5/16	1/4	9/16	13/16	1/2	NRC-G-5069
5/16	1/4	3/4	1	1/2	NRC-G-5070
3/8	1/4	5/8	7/8	1/2	NRC-G-5071
7/16	1/4	11/16	15/16	1/2	NRC-G-5072
1/2	1/4	13/16	1-1/16	1/2	NRC-G-5073
9/16	1/4	13/16	1-1/16	1/2	NRC-G-5074
5/8	1/4	7/8	1-1/8	1/2	NRC-G-5075
11/16	1/4	1	1-5/16	9/16	NRC-G-5076
3/4	1/4	1-1/16	1-3/8	9/16	NRC-G-5077
7/8	1/4	1-1/4	1-5/8	5/8	NRC-G-5078
1	1/4	1-3/8	1-3/4	5/8	NRC-G-5079
1-1/2	1/4	1-3/4	2-1/8	5/8	NRC-G-5080
